Motogadget Motoscope Tiny Speedster Speedo And M-TRI Signal Adapter Thruxton 900 2015

Motogadget Motoscope Tiny Speedster Speedometer and m-TRI Signal Adapter Thruxton

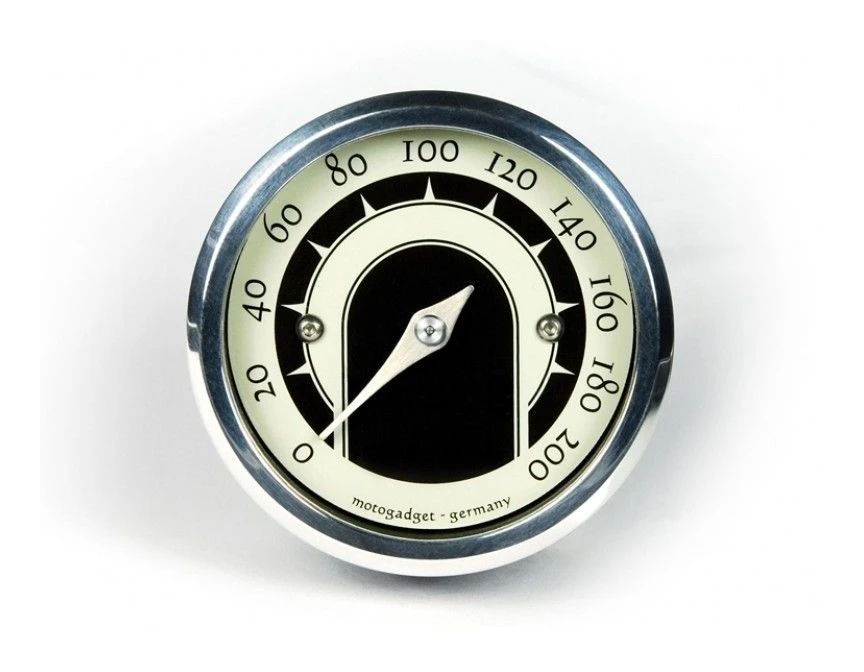

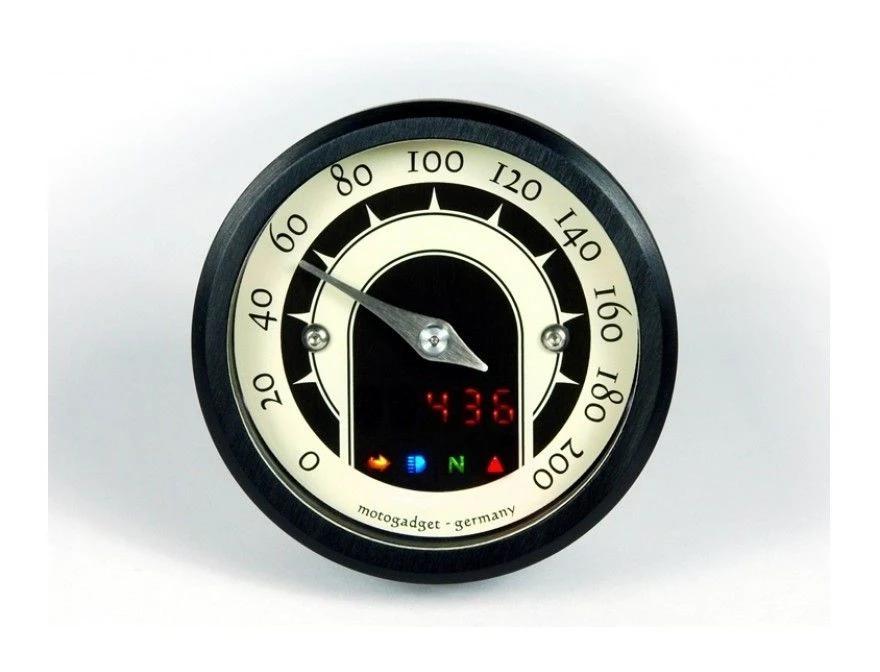

This is a bundled kit of a Motogadget Motoscope Tiny Speedster and a m-TRI Signal Adapter that enables near plug-and-play connectivity on a 2015 model year Triumph Thruxton. The Motoscope Tiny Speedometer is the perfect way to add easy to read, low-profile, multi-functional gauges to your bike while keeping the clean and classic looks of your Triumph.

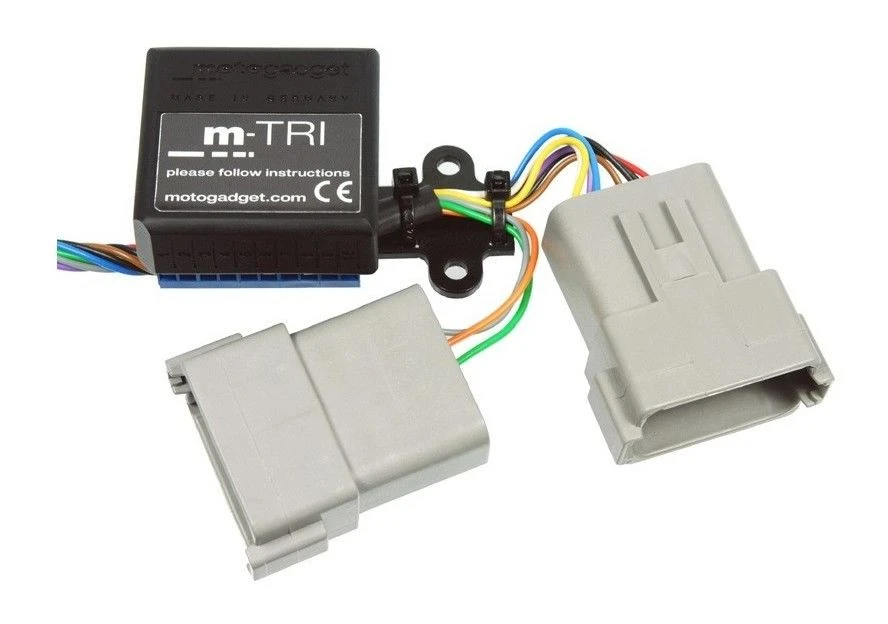

In the past, it was not possible to remove the original gauges on Triumph twins 2011+ and triples 2006+. Once the original gauges were disconnected, the built-in electrical CAN bus system of these models instantly became inoperative. No modifications were even possible. The m-TRI Signal Adapter does the heavy digital lifting to enable an aftermarket gauge to work with Triumph’s OEM electrical system.

Features:

• Analog tachometer dial driven by a precision stepper motor
• Displays: speed, average speed, max speed, max rpm, max positive acceleration (0-20.0 m/s2), max negative acceleration, gear indicator (1-6), trip meter, odometer (adjustable), battery voltage, air temperature (optional instead of water temp), oil temp 40-160°C (104-320°F) with high/low warning, oil pressure 0-8 bar (0-116psi) with high/low warning
• Indicator lights: turn signal, high beam, neutral, Red triangle for different warning functions either external (e. g. oil pressure switch) or internal (rpm, temperature, pressure, voltage)
• Mounting diameter: 80mm (3.15″)
• Bezel diameter: 85mm (3.35″)
• Depth without cable fitting: 34mm (1.34″)
• Mounts via three M4 threaded holes on rear face
• m-TRI Signal Adapter main housing measures 42mm L x 42mm W x 27mm H (1.65″ x 1.65″ x 1.06″)
• Made in Germany

Includes:

• Instrument with 75cm (29.5″) connection cable
• m-TRI Signal Adapter specific to the 2015 model year Triumph Thruxton
• Miniature push-button switch
• Stainless steel speedometer sensor (M5x0.5) with 150cm (59″) connector cable
• 2 neodymium mini magnets
• 2 M3 mounting screws with washers
• 2 diodes for pairing of turn signals
• Detailed installation and operating instructions

Note: Temperature sensors, pressure sensors and mounting bracket sold separately. The gear shift indicator is a mathematical function calculated from rpm and ground speed values and does not require any additional sensors. Please note that the model year of your Triumph is not necessarily identical to the year of manufacture. The 11th VIN digit identifies the model year. Example: “A” = 2010, “B” = 2011, “C” = 2012 etc.
