Drag Specialties Legacy Indented Cafe Gas Tank

Drag Specialties Legacy Lynx Indented Cafe Gas Tank

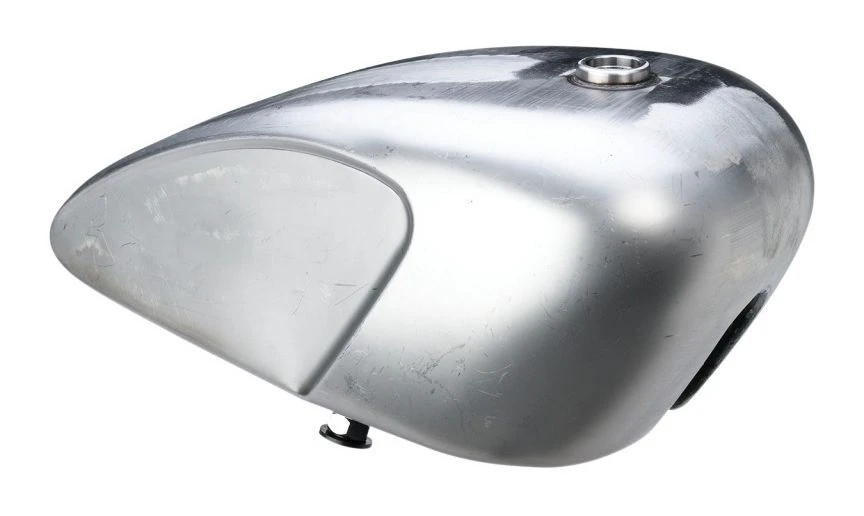

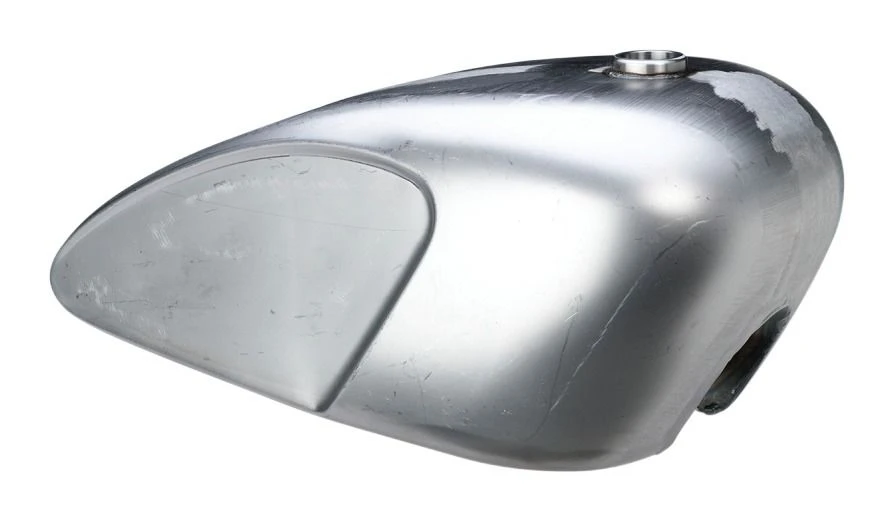

Unique, functional styling and a great classic look that is just enough to set your bike apart without overdoing it. The cafe knee indents give it a race inspired style that looks like it is moving standing still. These precision-made tanks are TIG-welded construction using deep-drawn steel. They are made with a custom raised steel bung and include a CNC-machined 1 5/6″ diameter raw aluminum gas cap with a Viton seal. The tank is approximately 20″ long x 11″ wide, holds about 3 gallons and shows up at your door already pressure-tested.

Features:

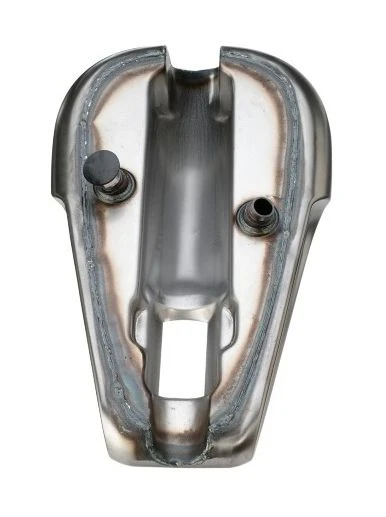

• Carb type has left-hand and right-hand threaded petcock bungs

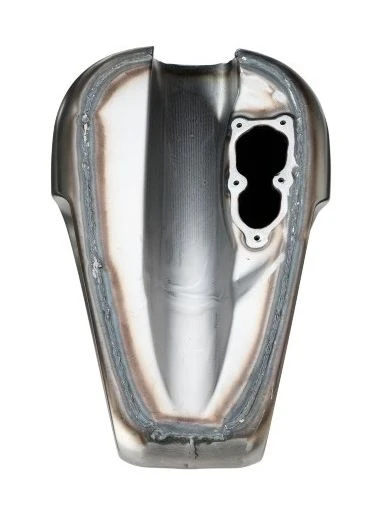

• EFI type accepts 2007-up fuel pump and fittings
• Three-piece weld-on steel mount kit included

Deminsions:

• Length: 21″ x Width: 11″ x Tunnel Length: 20″
• Tunnel Width: Front: 2 1/4″ x Rear: 1 3/4 “
• Tunnel Depth: Front: 3 3/4″ x Rear: 3/4″ x Tank Height: 8 1/2″
• Fuel Petcock: Left center/Right Center
• Petcock Thread Size: 22mm
• Gas Cap Type: Threaded

Note: It is recommended to check for proper fitment and clearance prior to paint or bodywork.
