Digital Guard Dawg Neutrino Pro Intelligent Motorcycle Controller

Digital Guard Dawg Neutrino Pro Intelligent Motorcycle Controller

Neutrino Pro automatically manages your bike’s electrical system and all accessories through a sophisticated device controller with convenient monitoring via Cockpit Controller app on your smartphone. Waterproof, shockproof unit installs easily and eliminates the need for a jumble of wires, aftermarket switches, controllers and relays. Handles 60 amps over 6 circuits using advanced fuseless resettable circuit protection. Fully CAN-Bus compatible too. Protects your bikes electrical system by automatically shutting down individual circuits if they draw more than their assigned current or short. If you left your radio or lighting on with the bike turned off, Neutrino will automatically switch off those circuits before your battery gets too low, all Neutrino Pro even allow you to configure a circuit control based on vehicle speed.

Features:

• Uses advanced technology to provide fully automatic management and control for your bikes accessories.
• Six individually customizable power circuits manage all Lighting, Heated Grips & Clothing, GPS, Radio, Power outlets, air horns or any other accessories.
• Built-in features include Headlight and Brake light modulating circuitry providing proven collision avoidance for enhanced rider safety.
• Program your heated grips or garments to automatically turn on/off when the temp hits a specified level and adjust the heat up/down according to changing temperatures.

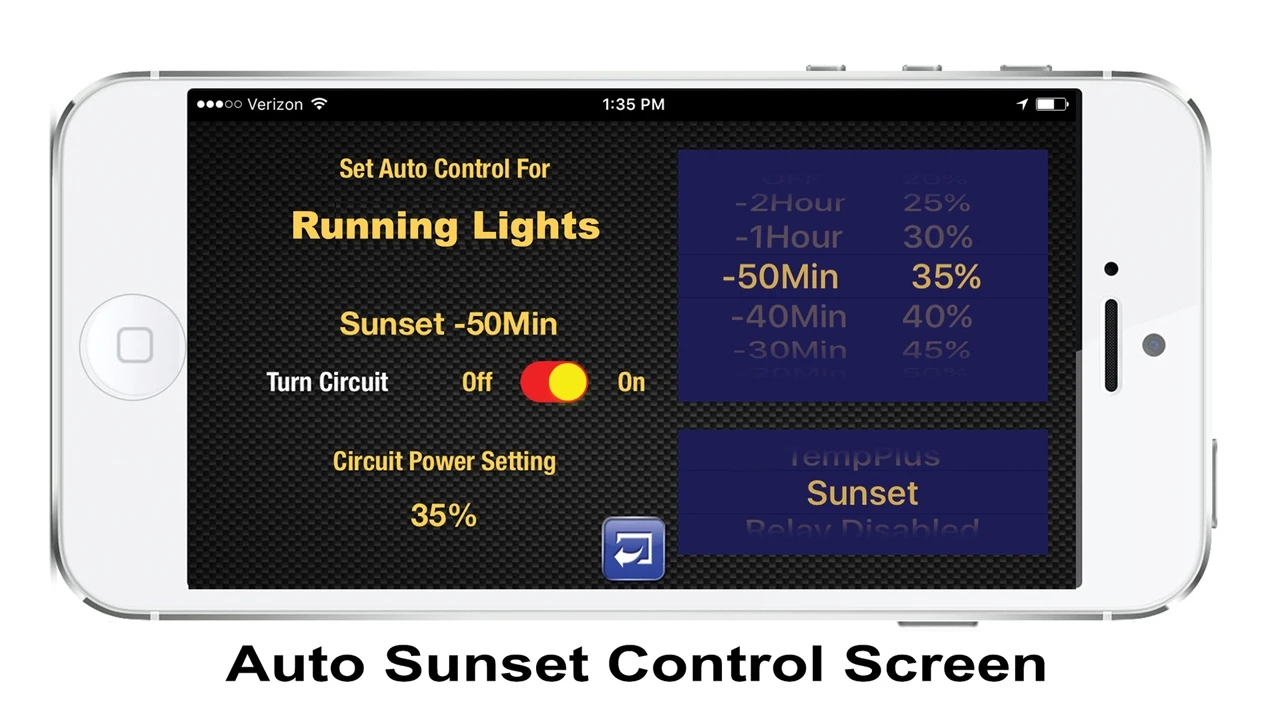

• Program individual lighting circuits to turn on at sunset (+/- up to 2 hours) and automatically increase their brightness as to evening darkens.
• Program your Radio or GPS circuits to remain on for a specified length of time after you turn your bike off. (10sec-2hr)
• Once programmed, it will function to control your devices automatically, without needing to bring your phone along. Or, pair with your mobile device for on-the-fly fingertip control of all accessories through this glove-friendly interface.
• Displays composite view of the entire electrical system showing the status of all 6 circuits with real-time amperage use. Also displays heading information, altitude, ambient temperature, speed, and time
• Controller app runs in the foreground or background, so you can listen to music, get turn by turn directions, and have completely automated control of your bike’s electrical accessories at all times. Makes your riding experience easier, more comfortable and safer….with or without your smart phone.
• Fully configurable and controllable via a smart phone
• Eliminates accessory wiring, switches, relays and controllers
• Can handle up to 20 amps on one circuit with current spike management
• Sequential circuit startup
• Programmable self-resetting circuit breakers
• Uses easily accessible and reconfigurable screw terminals….no need for special terminations
• Built with both power and ground planes. Minimizes ground loop and installation problems
• Heavy duty construction using 6 layer circuit board with heavy copper layers
• Remote temperature sensor
• Direct battery charger inputs
• Flexible connection architecture allows for optimal Bluetooth radio placement
• OS application available from the iTunes store
• System is fully configurable wherever you are…no need for a PC (Can be operated with or without smartphone)
• Multiple distribution modules each maintain their own settings so you can move your phone from vehicle to vehicle while retaining all the settings for that vehicle
• Free application software for both iOS and Android

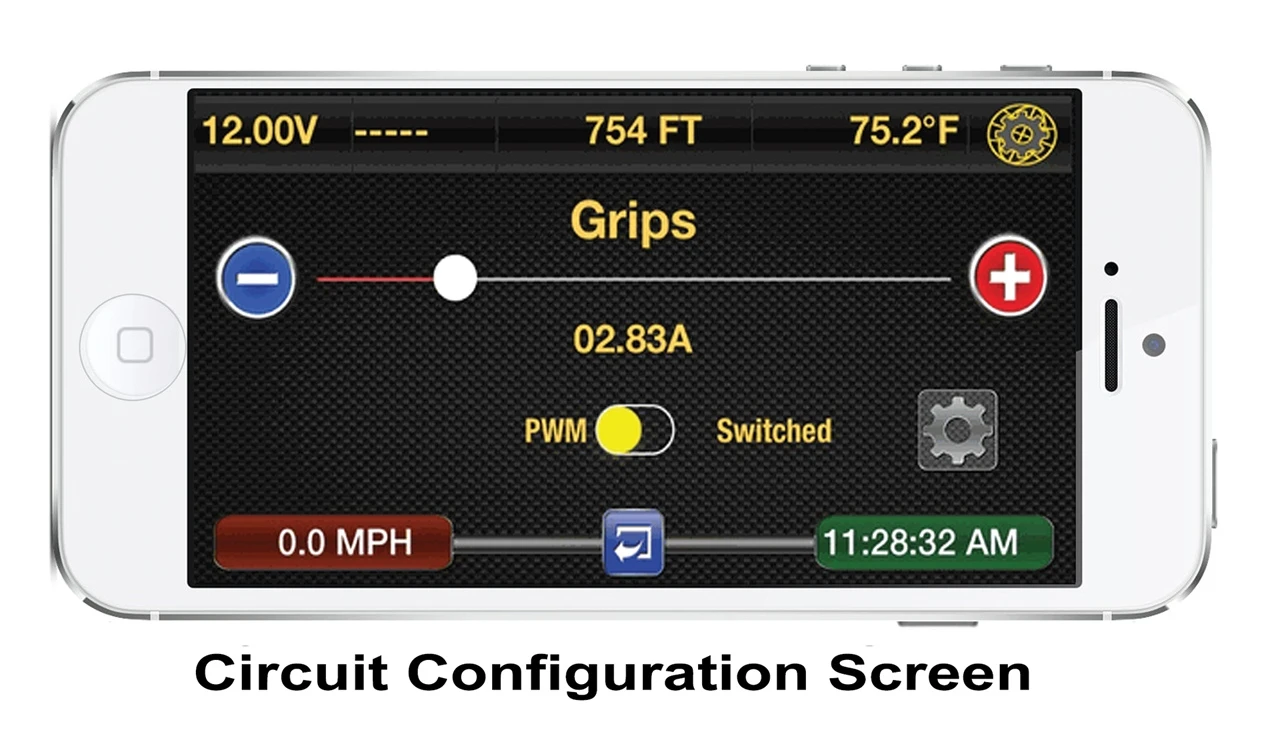

• Highly configurable, Assignable Circuit names, Circuit breaker limits by circuit, PWM (variable control), or switched control by circuit, Settings memory by circuit, Voltage alarm, Ignition off behavior (auto shut down, timed shut down, voltage-dependent shut down) by circuit, Selectable international units of measure
• Unparalleled range of data: Speed, Time, Vehicle voltage, Amperage by circuit and total, Heading, Altitude, Temperature
