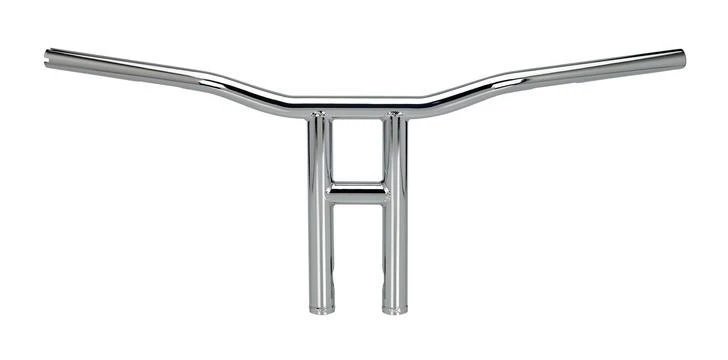

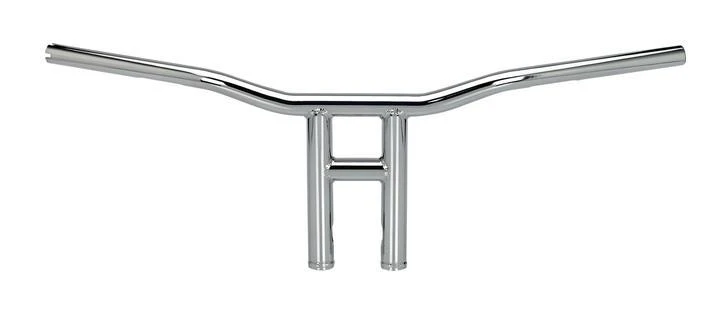

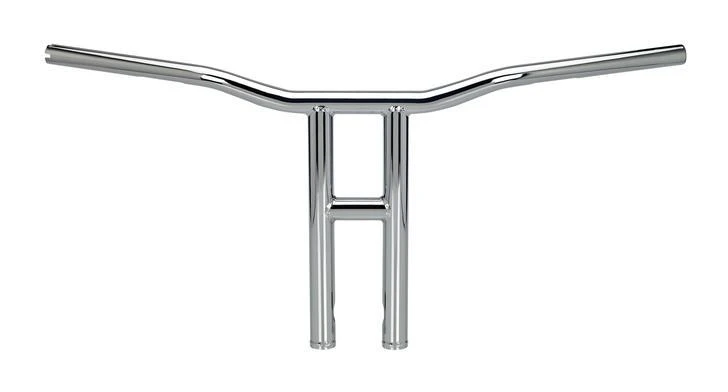

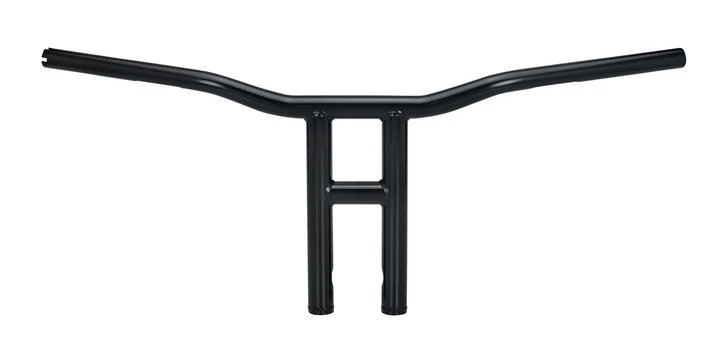

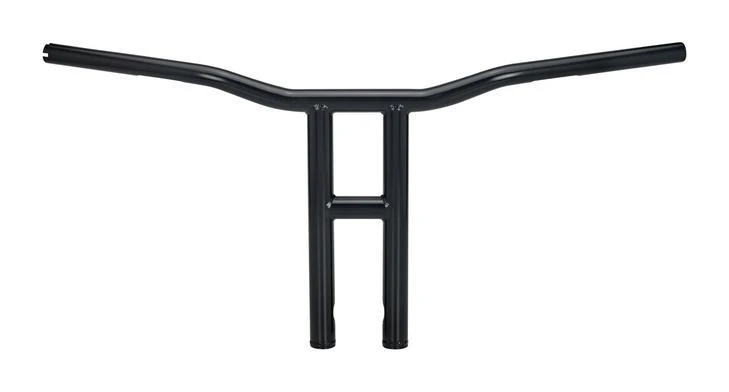

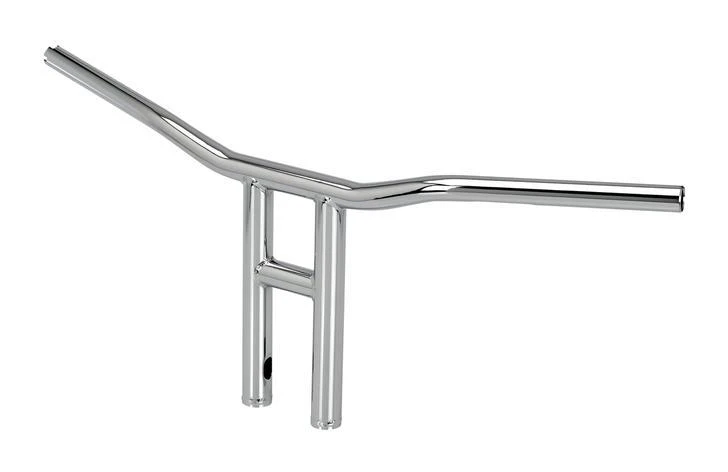

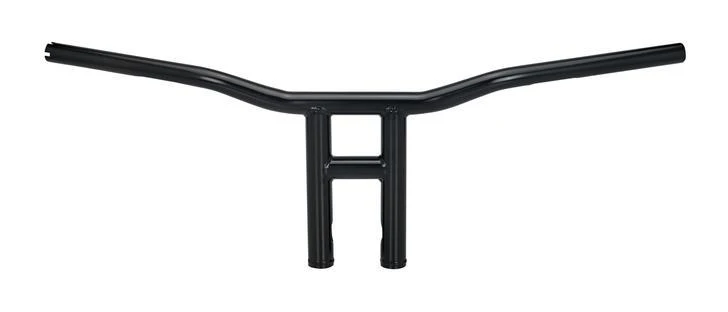

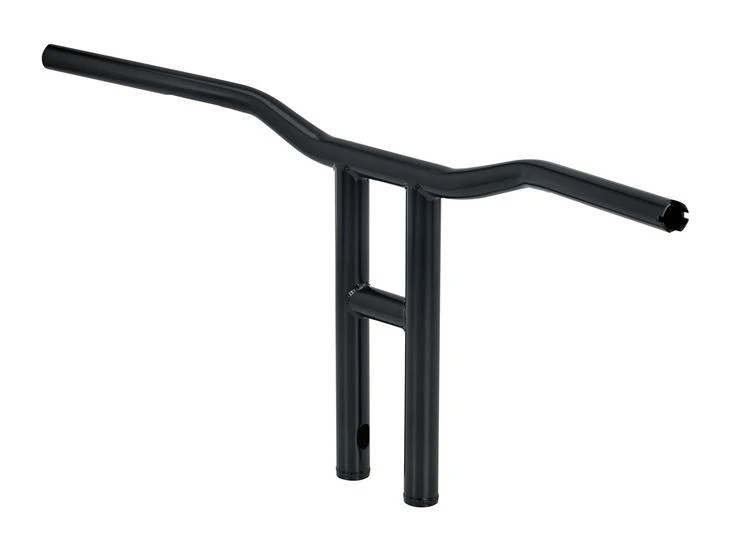

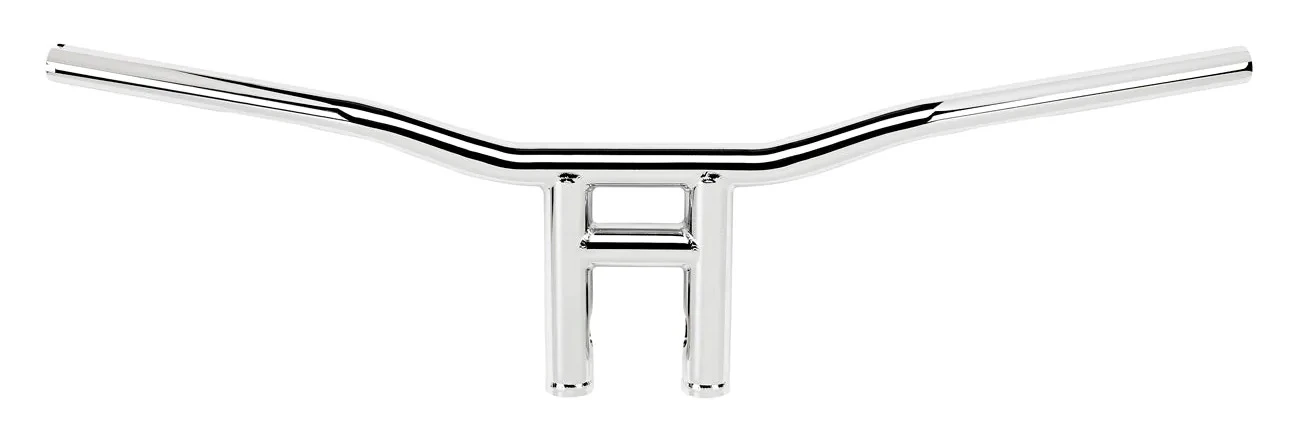

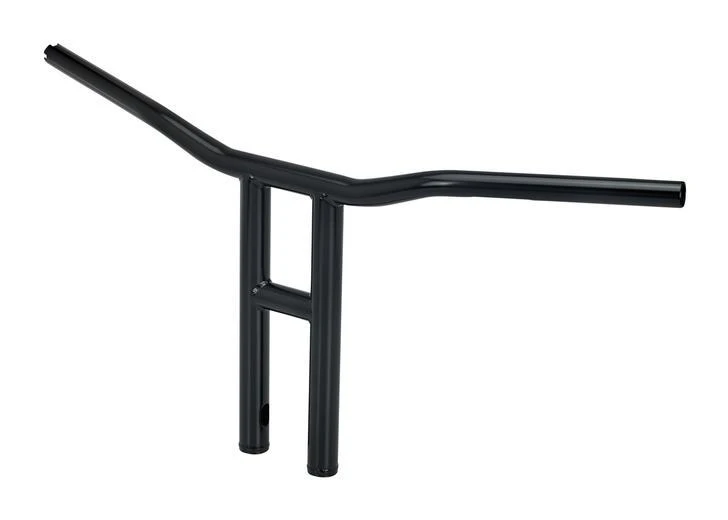

Biltwell Tyson XL 1 1/8″ TBW Handlebars

Biltwell Tyson XL 1 1/8″ FBW Handlebars

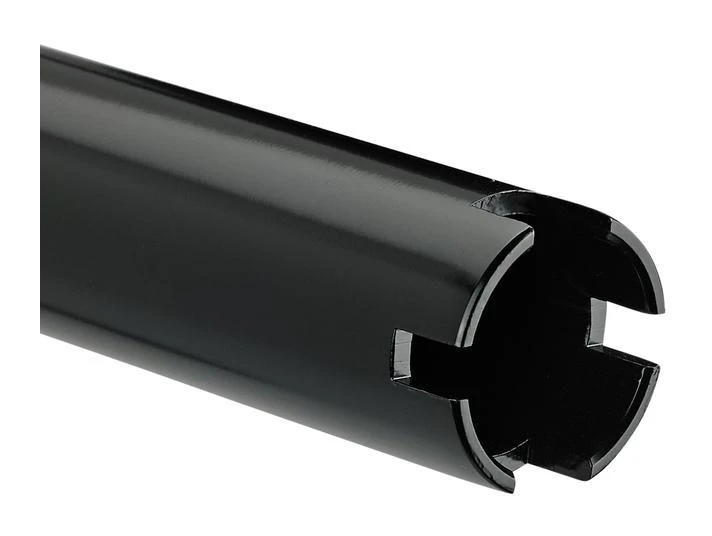

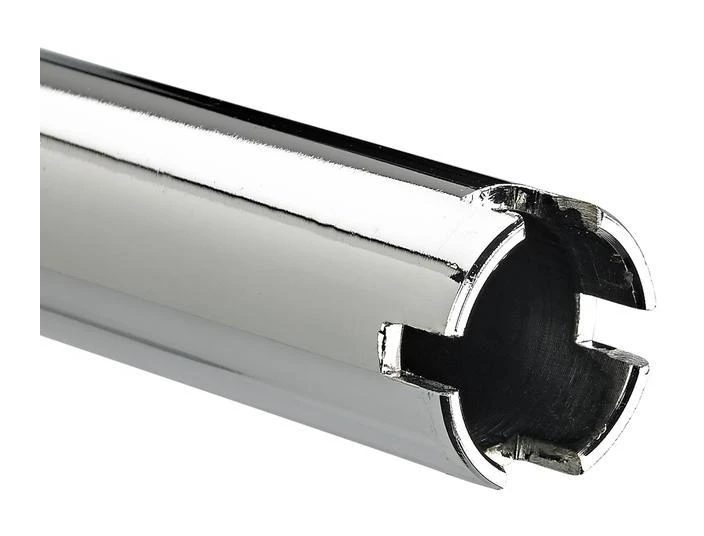

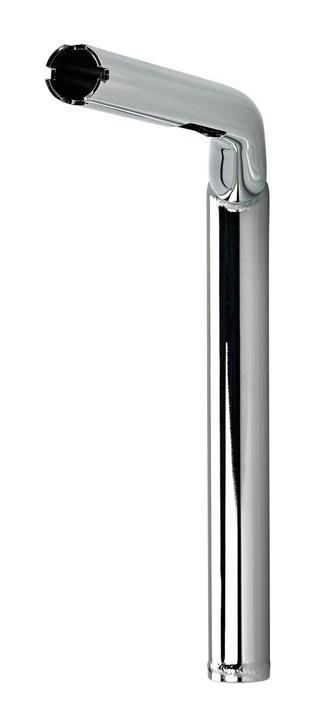

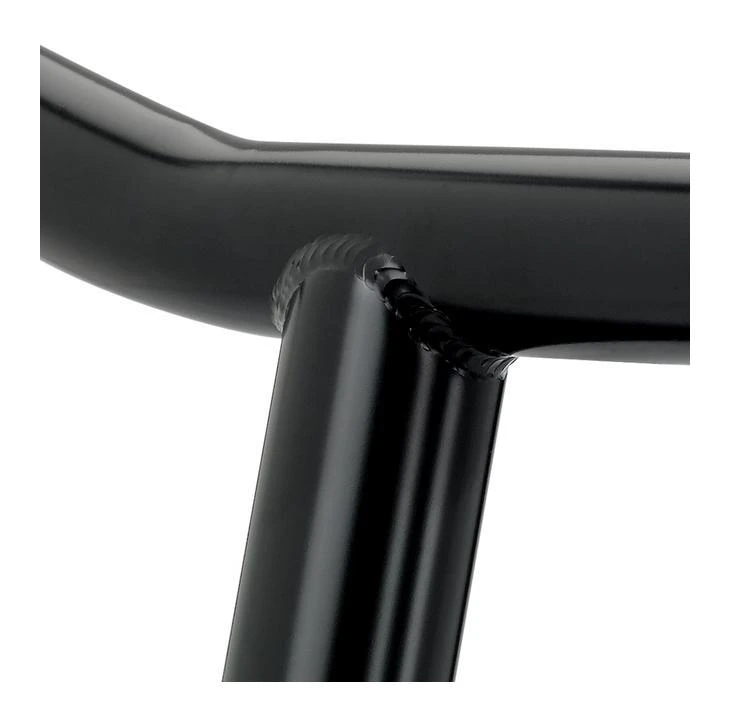

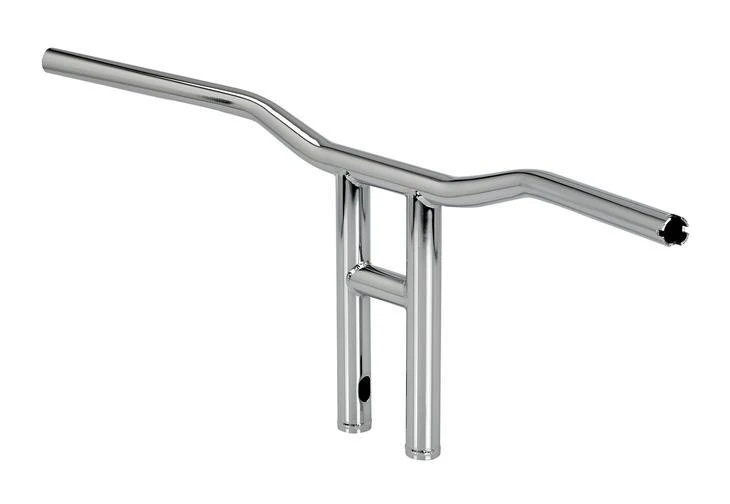

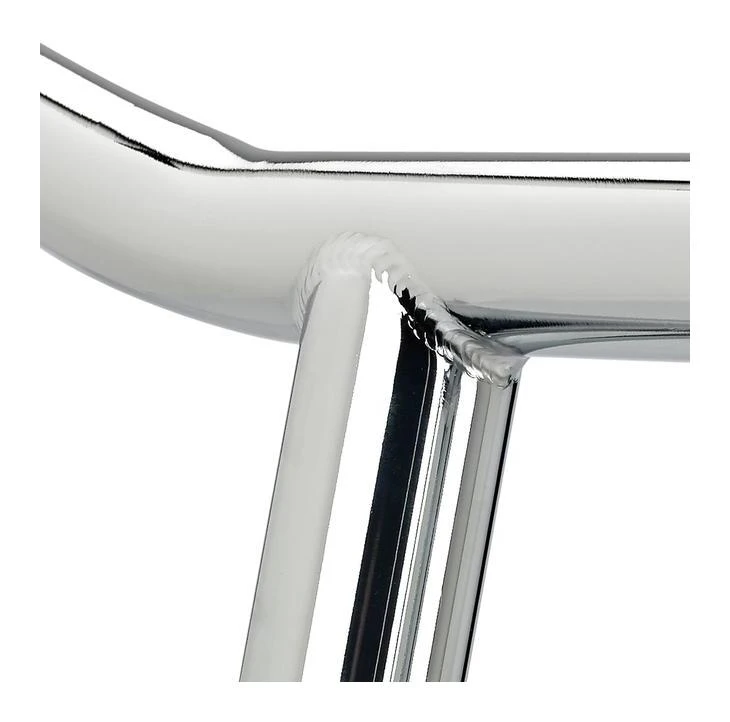

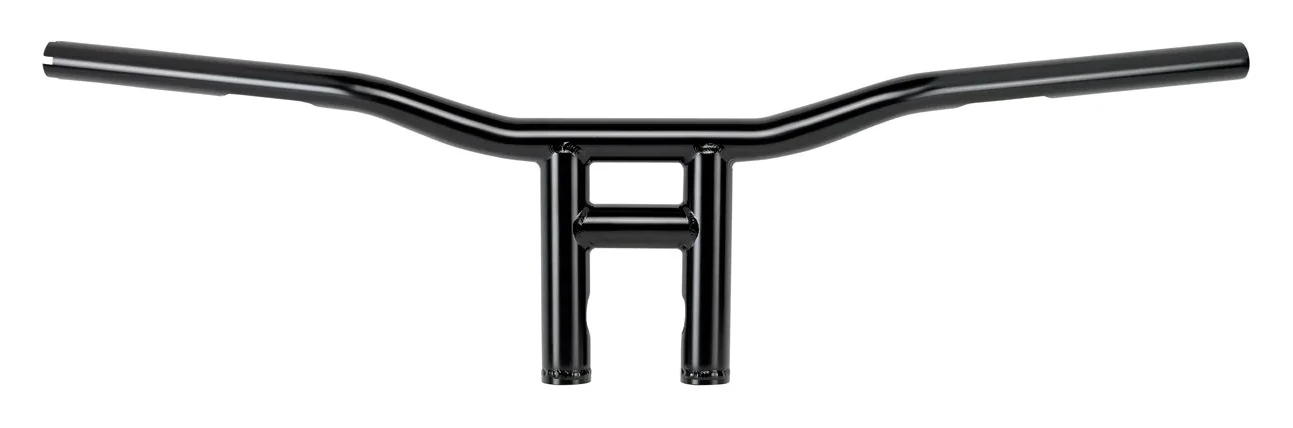

The Tyson XL Fly-By-Wire handlebars boast rugged, seamless 4130 chromoly construction for strength and comfortable ergonomics for high-performance riding and clean aesthetics, making it the perfect match for modern club style bikes. The handlebar is 0.120″ wall (3mm) seamless 4130 chromoly and tapered from 1 1/8″ at the center to 1″ O.D. on the ends. CNC-machined slots are cut near both bar ends to facilitate easy wire routing on stock hand controls, and the notches on the throttle side accept the stock H-D TBW (Throttle-By-Wire) assembly. Tyson XL’s vertical uprights are 1 1/4″ O.D. x 0.120″ wall seamless 4130 chromoly tubes precision mitered and TIG welded to the handlebar for beauty and strength.

Features:

• Handlebar is 1 1/8″ at the center, tapered to 1″ O.D. on the ends
• Vertical uprights are 1 1/4″ O.D.
• 0.120″ wall thickness

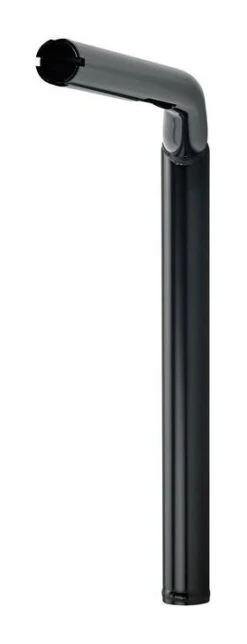

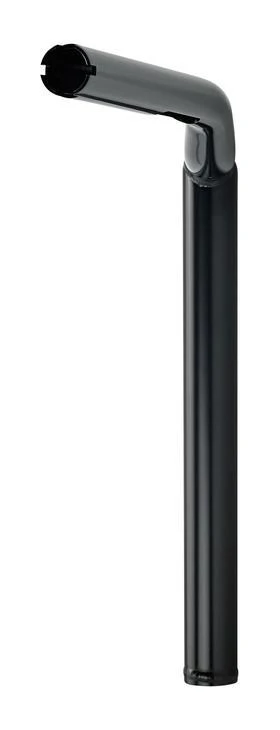

• Slots for internal wiring of cables
• TIG-welded internal mounting bungs accept 1/2″-13 t.p.i. mounting bolts

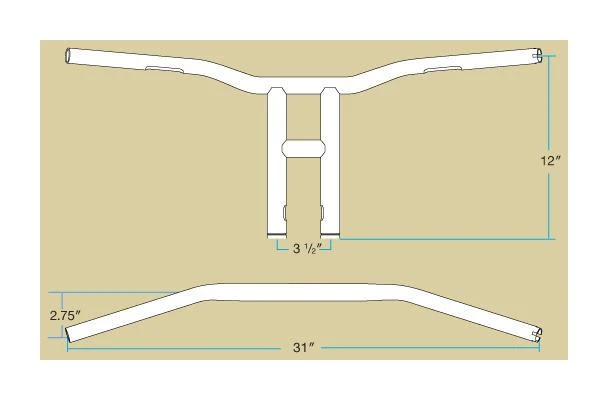

• Vertical uprights are 3 1/2″ apart on center
• Notched for Fly-By-Wire

Specs:

• 30 1/2″ Wide
• 2 3/4″ Pullback
